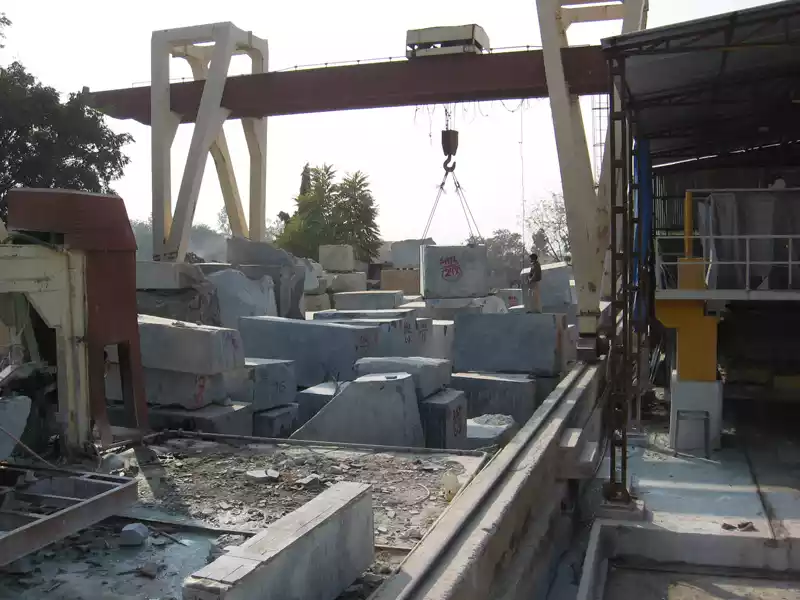

Gantry Crane

Our Gantry Crane offers efficient lifting solutions for heavy loads. Trust in its robust design and precise performance for your operations.

Overview

Gantry Crane is one of the most important machine of any stone processing company and various other industries. We are Gantry Crane Manufacturer. Our Gantry Cranes are capable of lifting various load sizes as per requirement of client. These Gantry Cranes are manufactured as per custom requirement of buyer, so that it can provide optimum output to you, for your specific need.

Company Details

Vartika Engineering

Project Timeline

5 Years

Location

Udaipur, Rajasthan

Need Help?

Technical Data		Modal
Technical Data		I	II	III	IV	V	VI	VII
Capacity (in ton)		10	15	20	30	40	50	60
Span of Beam (in meter)		10- 50
Cantilever overhang (in meter)		3 – 11
Lifting Height (in meter)		5.5 – 11
Operational Speed	Long Travel (meter/min)	13/20	10/18/8				10
	Cross Travel (meter/min)	13.7/18	8.7/16				10
	Lift (meter/min)	2.5/7.8	2.2/2.78				10
Motor Power	Long Travel (meter/min)	1.5	2	2	2	3	5	7.5
	Cross Travel (meter/min)	1.5	2	2	2	3	5	7.5
	Lift (meter/min)	10	15	20	25	30	40	50
Total Installed Power (hp)		14.5	21	26	31	39	55	72.5

Let's be great together

Get in Touch with Vartika Engineering Today!

Reach out now for expert solutions and support for your engineering needs.

F. A. Q

Frequently Asked Questions

What is a Gantry Crane?

A Gantry Crane is a type of crane that typically straddles an object or workspace, utilizing overhead beams for lifting.

What are the key features of your Gantry Crane?

Our Gantry Crane boasts sturdy construction, adjustable height, smooth operation, and high lifting capacity.

What types of materials can it lift?

Our Gantry Crane is designed to lift a wide range of materials, from heavy machinery and equipment to containers and pallets.

Is installation assistance provided?

Yes, we offer installation services to ensure proper setup and safe operation of our Gantry Crane.

Is training available for operators?

Absolutely! We provide comprehensive training for operators to ensure safe and efficient use of the Gantry Crane.

What safety features does it have?

Our Gantry Crane includes safety features such as overload protection, emergency stop buttons, and secure locking mechanisms.
